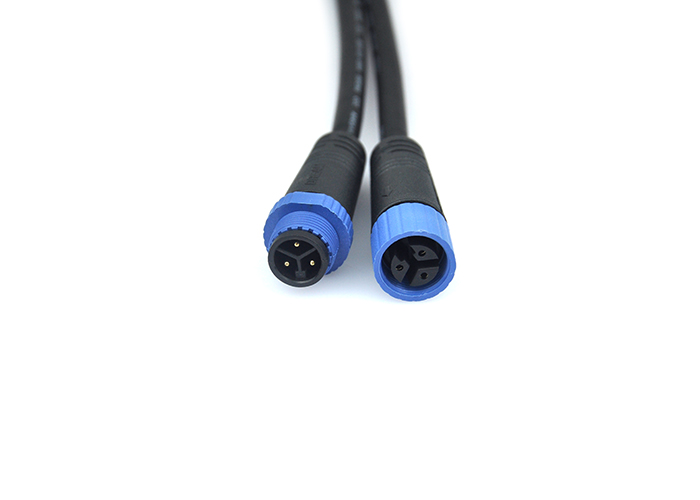

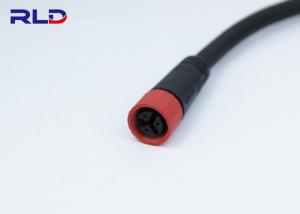

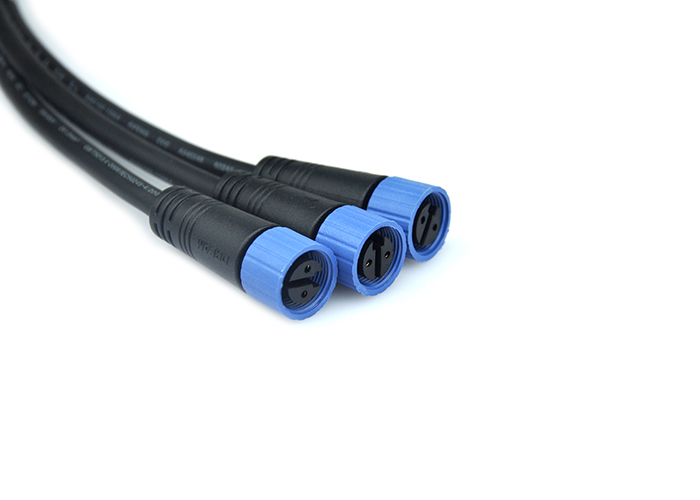

Male Female Circular Waterproof Outdoor Lighting Connectors
Main Features
Operating Temperature : PA66 : -40℃~+105℃
Plug/Unplug durability : 1500times
Connection Mode : Screw Threaded
Parameters
1. Electrical T connector.
2. Favorable waterproof feature: IP68 degree.
3. Screw fixing style,easy to assemble.
4. 2pin,3pin are available.
5. M15 Nylon assembly style,field installable,3-way T connector.
6. The main max.cable diameter: 9mm.
7. Any length of the cable is available and terminal processing.
8. Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
9. Our products are widely used in LED lighting,outdoor display,electrical equipment,automation machines,LED panel and etc.
Benefits
1. Screw threaded assembly, simple in using, convenient in installation;
2. Nylon material, stable electrical performance, high-strength resistance to pressure, anti-heat, anti-explosion, and corrosion;
3. Products are in line with the National Semiconductor Industry Alliance, CSA016 standards
4. The male plug could match our DR-T08.
Parameters
| Product | Waterproof Outdoor Lighting Connectors |
| Test Voltage | 1000V~1500V |
| Insulation Resistance | 200 MΩ |
| Relative Humidity | ≤90% |
| Storage temperature | IP68 |
| Working temperature | -25℃~ 18℃ |
| Working temperature | -25℃~ +105℃ |
| Plug/Unplug Durability | 1000 times |
FAQ
Q1 : Can I have a sample for test ?
Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .
Q2 : How about the lead time ?
Sample order need 3-5 working days , mess order need 15-20 working days .
Q3 : Do you have certificates about the waterproof connectors ?
Yes , we have got UL for DL-A02 series , CE for all waterproof connectors .
Q4 : What payment can you accept ?
We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .
Q5 : Is that OK to print our Logo on your product and package ?
Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .
Q6 : Are you a factory ? Where is your factory ?
Yes , we are a factory , we located in Shenzhen .
Q7 : Do you accept OEM & ODM service ?
Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.
Q8 : How much does it cost to my country ?
The freight will be given by fright company based on your Gross weight and CBM .
Q9 : Can I order 100m cable for 1pc waterproof connector ?
Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .
Product Details
