2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories

Name: 2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories
Brand: Realeader
Price: 1 USD

Quality 2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories wholesale

Brand Name : Realeader

Model Number : DR-A09

Certification : ISO9001

Place of Origin : Guangdong, China

MOQ : 10pieces

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram , Paypal

Supply Ability : 100000pieces/Month

Delivery Time : 7-10 working days

Packaging Details : 25*20*16CM

Product : IP65 waterproof connectors

Pins : 2Pin/3Pin/4Pin/5Pin/6Pin

Working temperature : PVC: 0℃~ +80℃; TPU: -40℃~ +125℃

Certificate : ISO9001/CE

Insulator Material : PA66

Rated current : ≤2A

Rated voltage : ≤60V

Contact Now

IP65 2 Pin Waterproof Connector Mini Waterproof Connector For Electric Bicycle Accessories

1. Product Description

Direct plug-in assembly, simple in using, convenient in installation;
Specially designed for low-voltage, weak-current products;
With compact structure, small and exquisite shape, the plug is more suitable for product needs;
Our company developed the plug for electric bicycle signal lines in 2018.

2. Main specification:

Male Size : Φ7.41*24.1mm
Female Size : Φ7.41*23mm
Male Pin Diameter : Φ0.6 mm
External Material : PVC, TPU
Over-Mold Material : PA66
Insulator Material : PA66+30% fibre
Wire Specifications : 28AWG---22AWG
Wire Diameter : Φ3.0-Φ4.0
Protective Level : IP65
Temperature Environment : PVC: 0℃~ +80℃; TPU: -40℃~ +125℃
Plug/Unplug Durability : 1000 times

3. Widely used the following fields:

Electric bike accessories;
Low voltage signal lines;
Integrated lines

4. Data Sheet

Contact Cores	2Pin/3Pin/4Pin/5Pin/6Pin
Male Pin Diameter	Φ0.6 mm
External Material	PVC, TPU
Insulator Material	PA66+30% fibre
Wire Specifications	28AWG---22AWG
Protection Level	IP65
Contact Resistance	10mΩ
Insulation Resistance	100MΩ
Rated Current	2A

5. Questions & Answers

Q1: Can I have a sample for test?

Yes, sample order is welcomed.

Q2: How about the lead time?

For sample order: 5-7 working days;

For mass order: 15-20 working days .

Q3: Do you have certificates about the waterproof connectors?

Yes, we have gotten UL, CE, ISO9001 for all waterproof connectors .

Q4: What payment can you accept?

We are appreciate that you can pay via T/T, and of course you can pay through L/C, Western Union, and Paypal etc.

Q5: Is that OK to print our Logo on your product and package?

Yes, it is OK. Before our production please inform us formally, and confirm the design firstly based on the sample that we send to you .

6. Product Details

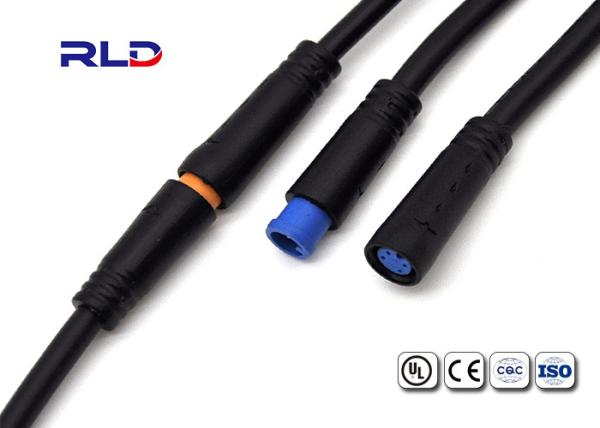

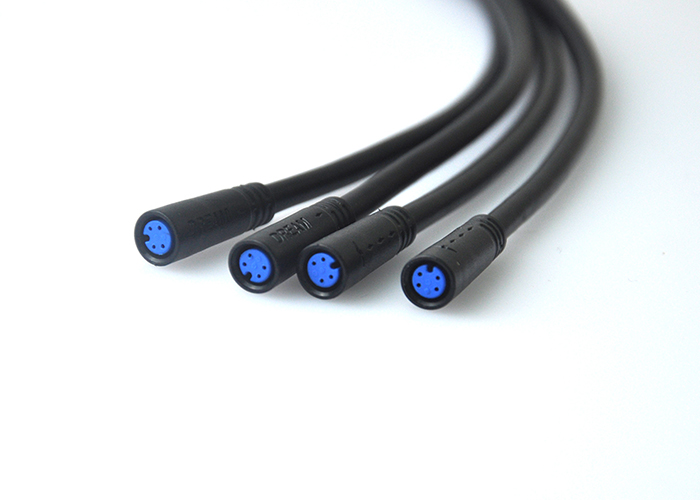

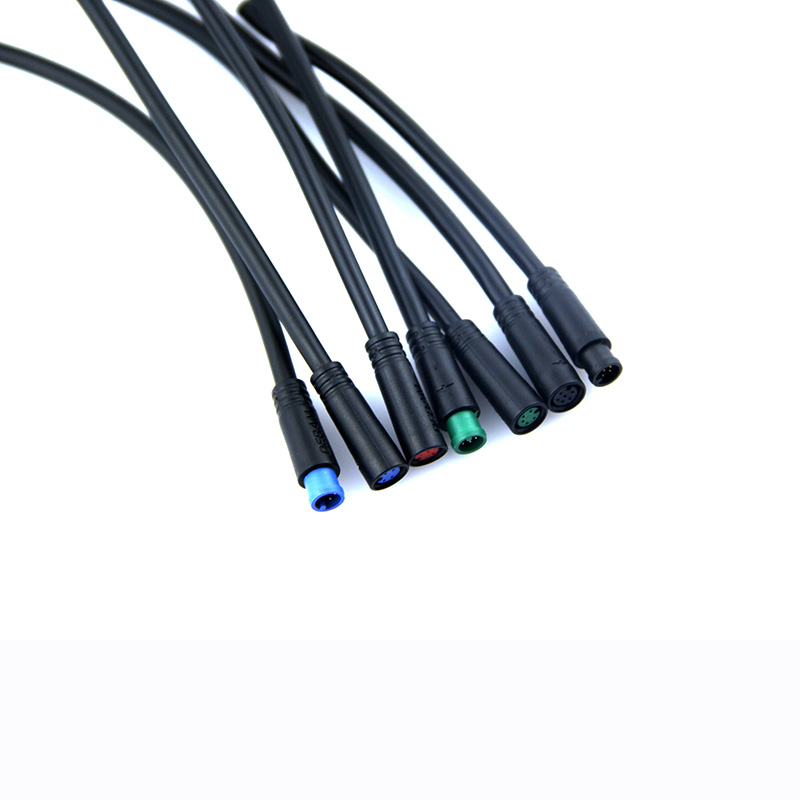

2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories
