Package and Shipping

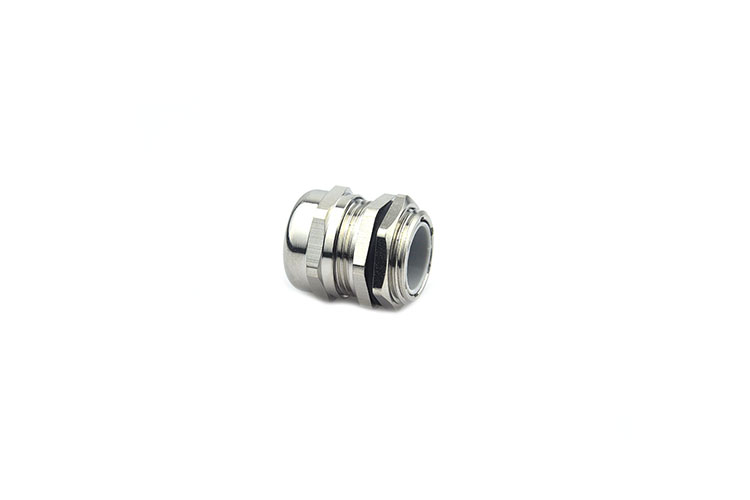

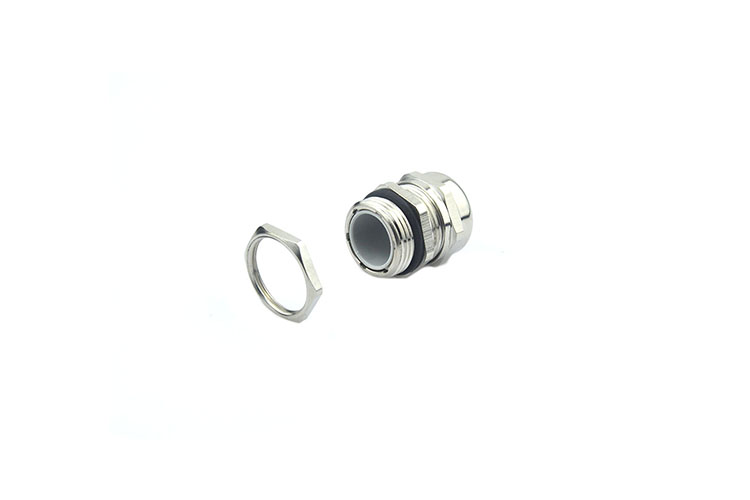

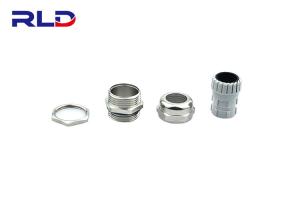

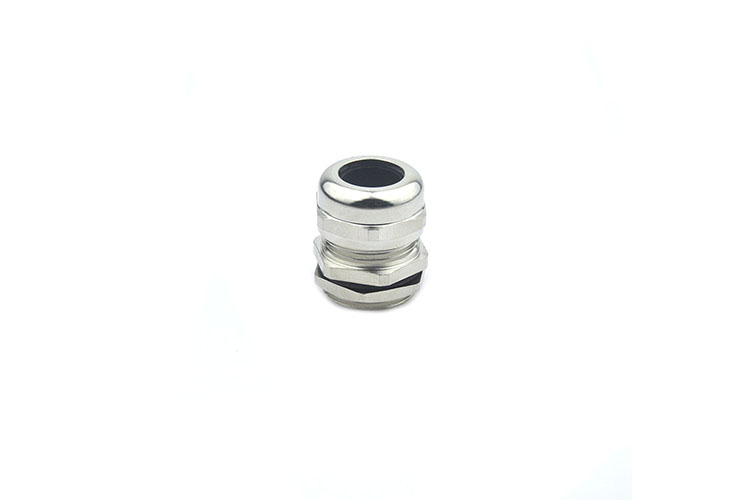

Material: Body: brass,nickel plated
Protection degree: Within the clamping range, and the use of O sealing ring screw tight head, its protection degree can reach IP68.
Operating temperature: Static condition: -40oC to 100oC, short-time120oC.
Product Characteristics: special design of the clamp and seals, extremely easy installation, suit for the wide range of cable, strong stretching resistance, waterproof, dustproof, resist to salt, acid, alcohol, grease, and another solvent.
Applications: Waterproof cable connector cable accessory
Parameters
| Thread AG | Cable range(mm) | Thread Length(GLmm) | Combined length | Spanner size(mm) | AGmm |
| M12*1.5 | 3-6.5 | 7 | 6 | 14 | 16 |
| M16*1.5 | 4-8 | 8 | 7 | 19 | 18 |
| M18*1.5 | 5-10 | 8 | 7 | 21 | 20 |
| M20*1.5 | 6-12 | 8 | 7.5 | 22 | 22 |
| M22*1.5 | 10-14 | 8 | 7.5 | 24 | 24 |
| M24*1.5 | 11-15 | 9 | 8 | 27 | 25 |
| M25*1.5 | 12-16 | 9 | 8 | 30 | 27 |
Questions & Answers
Q1 : Can I have a sample for test ?
Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .
Q2 : How about the lead time ?
Sample order need 3-5 working days , mess order need 15-20 working days .
Q3 : Do you have certificates about the waterproof connectors ?
Yes , we have got UL for T type series , CE for all waterproof connectors .
Q4 : What payment can you accept ?
We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .
Q5 : Is that OK to print our Logo on your product and package ?
Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .
Q6 : Are you a factory ? Where is your factory ?
Yes , we are a factory , we located in Shenzhen .
Q7 : Do you accept OEM & ODM service ?
Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.
Q8 : How much does it cost to my country ?
The freight will be given by fright company based on your Gross weight and CBM .
Q9 : Can I order 100m cable for 1pc waterproof connector ?
Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .
