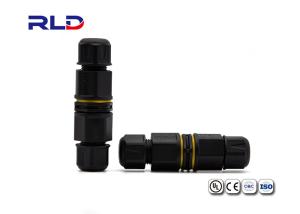

Straight 2 3 Pin 10mm IP67 IP68 Waterproof Light Connector
Quick Detail Of Waterproof Led Connectors
1) Advanced structure: Screw threaded
2) Mutiple pin: 2pin/3pin/4pin
3) Connector type : Male / Female
4) Colours:Black
Feature Of Waterproof Led Connectors
1. Nut type docking assembly, simple to use and convenient installation;
2. Integrating current and signal transmission in one of the multifunctional integrated circular connector;
3. The material of products in nylon fiber grealy improves product durability and safety;

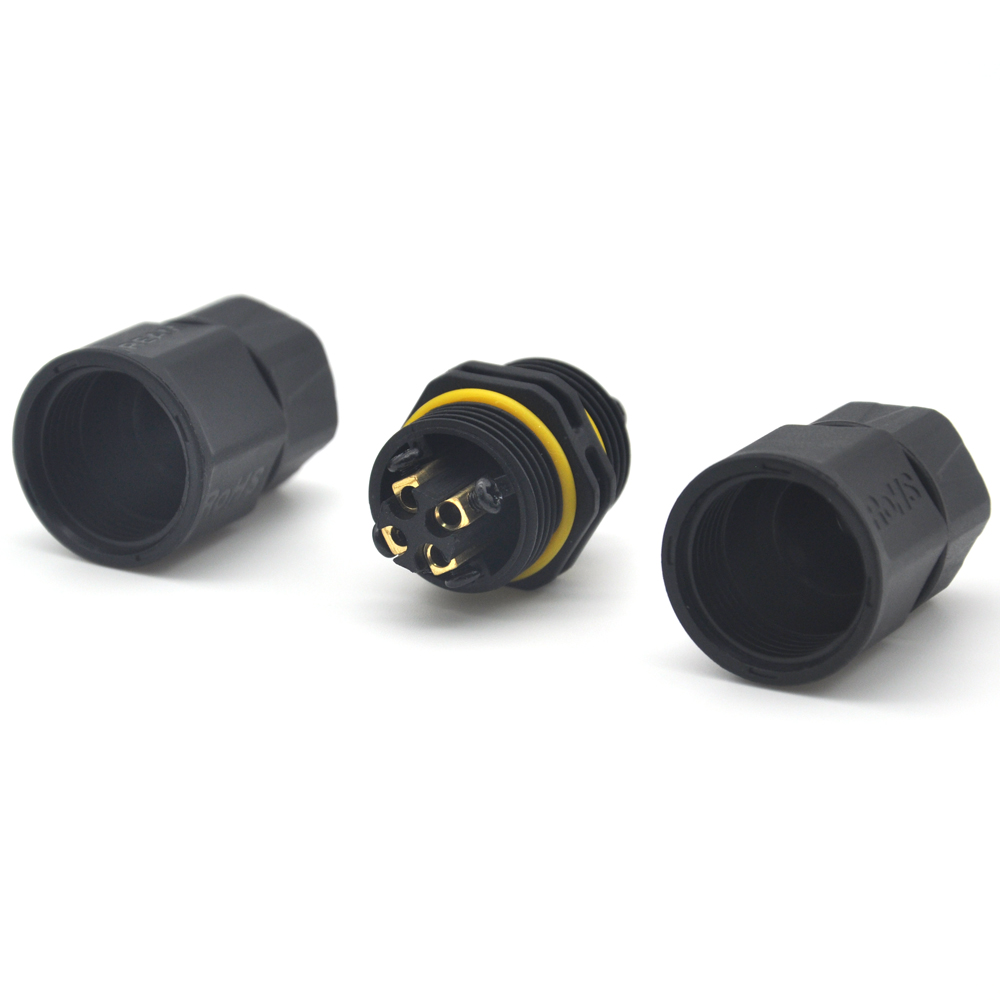

4. The pins with gold-plated ensure the conducting performance's stability and security;

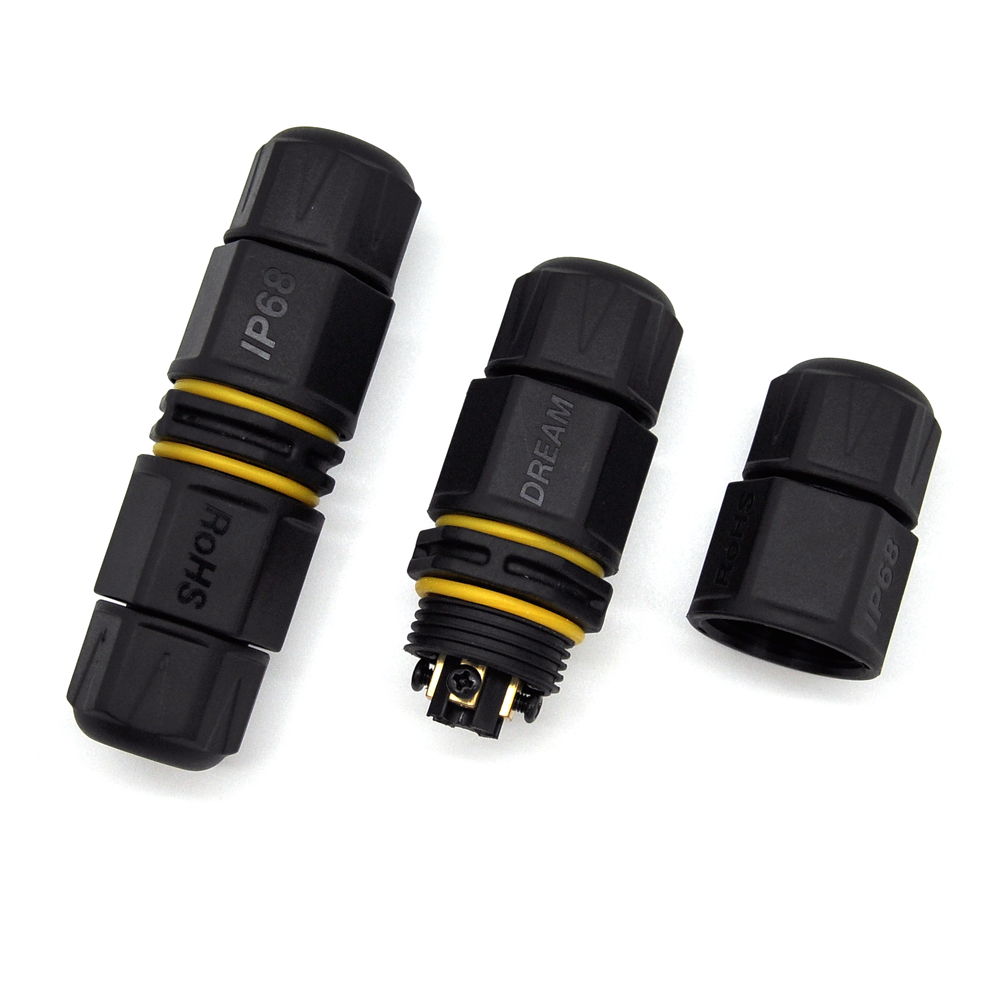

5. Combined structure, the connector can be parted into different components. Customers can just purchase the connector, then assemble and weld it according to the demand.
6. Mainly used for outdoor display screens and other upscale products.
Specification Of Waterproof Led Connectors
| Product Name | Waterproof Led Connectors | Certification | UL,CQC,CE |
| Current Rating | 20A | Gender | Assembly Connector |
| Voltage Rating | 250V AC | Pin Number | 2pin/3pin/4pin |
| Cable Size | 2pin: <2.5mm2 | Cable Range | 6-10mm |
| Cable Size | 3pin: <1.5mm2 | Connecting Mode | Screw Threaded |
| External Mold Material | PVC / TPU | IP Level | IP68 |
| Plug/unplug durability | 1500 times | Length | 0.5M/1M/2M/5M/10M/20M/Customized |
Technical date
| Pins number | Rated Current | Rated Voltage | Contact Resistance | Insulation Resistance | IP Level | Cable Specifications | Cable Range |
| 2 | 20A | 250VAC | 10mΩ | 200MΩ | IP68 | <1.5mm2 | 6-10mm |
| 3 | 20A | 250VAC | 10mΩ | 200MΩ | IP68 | <1.5mm2 | 6-10mm |
| 4 | 15A | 250VAC | 10mΩ | 200MΩ | IP68 | <1.5mm2 | 6-10mm |
Application Of Waterproof Led Connectors
1. LED Street Light
2. LED Lighting System
3. LED Module
What kind of waterproof Connector can we provide
M6 Waterproof Connector
M8 Waterproof Connector
M10 Waterproof Connector
M12 Waterproof Connector
M15 Waterproof Connector
M16 Waterproof Connector
M20 Waterproof Connector
M25 Waterproof Connector
M28 Waterproof Connector
Our Advantages
1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.
2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.
3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.
Application of Waterproof Led Connectors
