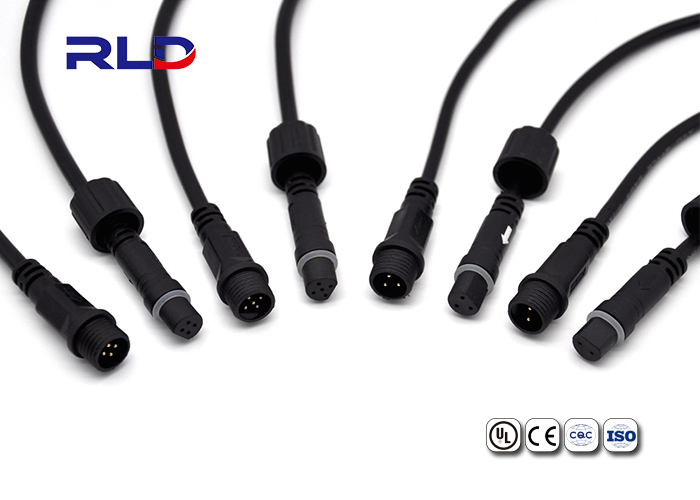

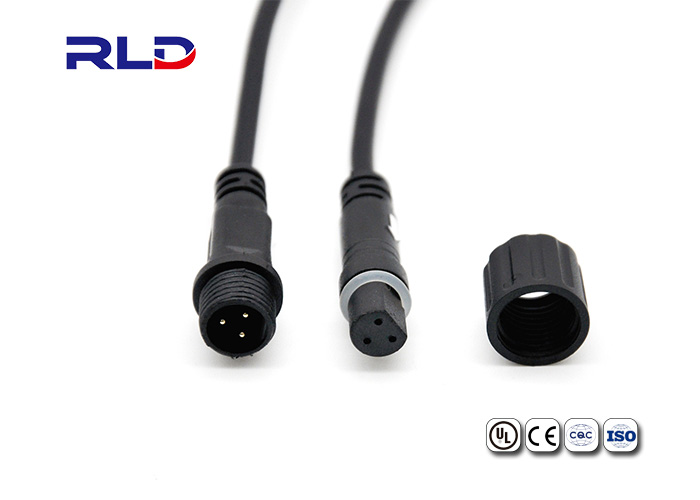

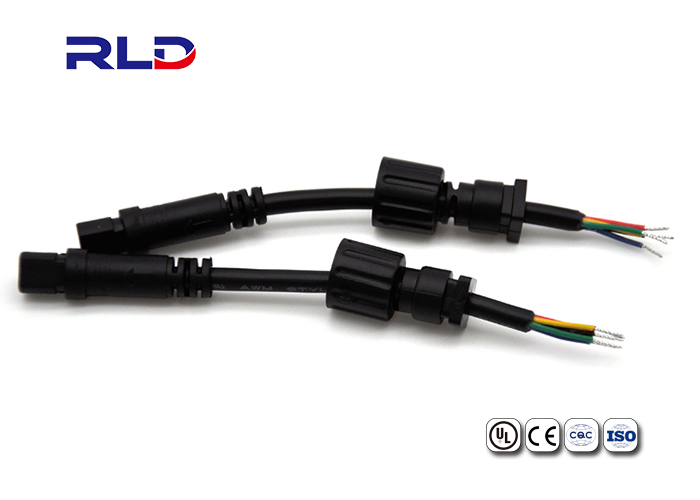

4 Pin 5 Pin M10 Waterproof Cable Connector For Led Outdoor Lighting
Quick Detail Of Waterproof Cable Connectors
1) Advanced structure: Screw threaded
2) Mutiple pin: 2pin/3pin/4pin/5pin
3) Connector type : Male / Female
4) Colours:Black
1. Screw threaded locking system, simple in using, convenient in installation;
2. Specially designed for low-voltage, weak-current products;
3. Gold-plated pins are used to ensure lasting and stable conductivity, safe and reliable;
4. With compact structure, small and exquisite shape, the plug is more suitable for product needs;
Mechnical Property
| Pins Number | 2Pin 3Pin 4Pin 5Pin |
| Male Pin Diameter | φ1.0mm |
| Male / Female Contact Material | Copper/ Copper Alloy (Gold Plating /Nickel Plating) |
| Over-Mold Material | PVC |
| Insulator Material | PA66+30% fiber |
| Wire Gauge | 28AWG-22AWG |
| Cable Diameter | φ3.0-φ5.0 |
| Protection Degree | IP67 |
| Operating Temperature | 0℃-80℃ |
| Plug/ Plug Durability | 1500 |
Electrical Property
| Rated Current | 2A |
| Rated Voltage | 60V |
| Test Voltage | 1000V |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100MΩ |
Application Of Waterproof Cable Connectors
1. Electric Bicycles
2. Ebike Motor
3. E-Scooter
4. LED Street Light
Our Advantages
1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.
2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.
3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.
Application of Waterproof Cable Connectors
MIANLY USED FOR ELECTRIC BICYCLE , INDUCTION SANITARY WARE ACCESSORY LINES AND OTHER SIGNAL LINES .
D02 Specification.pdf
