PA66 Y Waterproof Cable Connector For Parallel Connection Between Solar Panels

Product Categories
Shenzhen Realeader Industrial Co., Ltd.
Contact Now

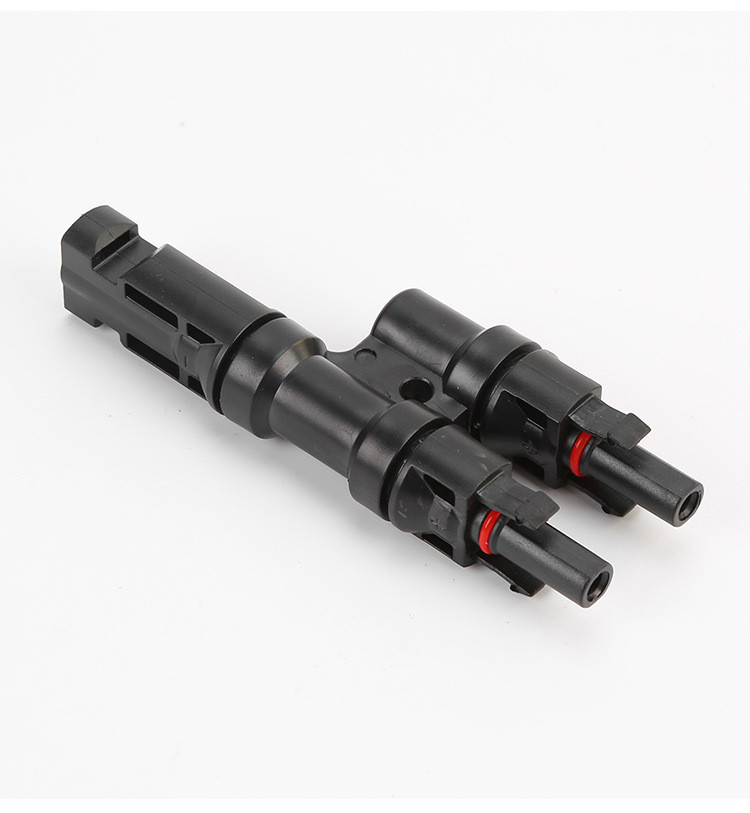

PA66 Y Waterproof Cable Connector For Parallel Connection Between Solar Panels

  • 1
  • 2

Brand Name : REALEADER

Model Number : RLD-MC4

Place of Origin : china

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Packaging Details : export standard package or according to customer's requirement..

Material : Housing:,PA66;Terminal:Copper

Name : Solar connector 1 to 2

Keywords : Cable Connector

Function : Dustproof/waterproof/sun resistant

Gender : Female Or Male

Rated Voltage : 1000V

Contact Now

PA66 Y Waterproof Cable Connector For Parallel Connection Between Solar Panels

1pair branch connectors connectors Y connector spliter for parallel connection between solar panels

Features:

The solar extension cable is mainly used for the connection between PV modules and inverter (controller). It can be produced according to different requirements


We have a variety of connectors for photovoltaic systems. Line-to-line types: RLD004 (30A) , RLD008 (80A). Branch types: 2T1, 3T1,4T1, T2,T3,T4,T4,T6. . Special function connector RLD004-D (with diode) and RLD004-F (with fuse).

Technical Data
Type RLD004-T2
Rated Voltage 1000VDC
Rated impulse voltage 8000V
Rated insulation voltage 6000V
Rated Current 30A
Standard

EN 62852: 2015

IEC 62852(ed.1)
Protection Degree IP67
Contact Resistance ≤0.5mΩ
Pollution Degree 2
Ambient Temperature -40~+85℃
Cable cross section area 2,5 mm² 4,0mm² 6,0 mm²
Cable outer diameter 4.0-7.0mm
Insulation Material PC /PPO
Flame Class UL94-V0

PA66 Y Waterproof Cable Connector For Parallel Connection Between Solar PanelsPA66 Y Waterproof Cable Connector For Parallel Connection Between Solar PanelsPA66 Y Waterproof Cable Connector For Parallel Connection Between Solar Panels
